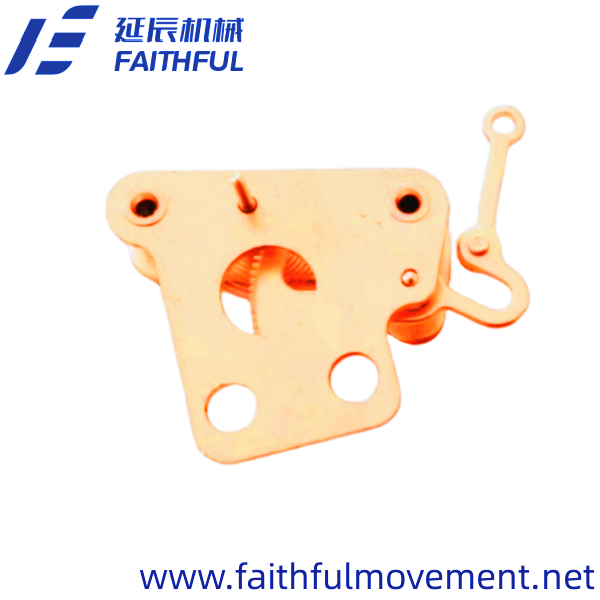

FYAC60-HG12/18-Reverse Installed Pressure Gauge Movement

Short Description:

Below information is the technical parameters of this movement.

Driving Ratio i	122/12=10.17 160/18=8.89
Length of Pinion L	14/13.7
Module of Gear m	0.2/0.15
Taper Ratio of Pinion △	1:50
Length of Extend Up Plate Pinion B1	4.4/4.7
Diameter of Installed Hole φ	2.6/3.1/3.5/4.1
Distance from pinion to Installed Hole ⊥	14.59 159
Material	Brass or Stainless Iron or Stainless steel

Send email to us Download as PDF

Product Detail

Product Tags

Product introduction

We produce and supply about all kind of pressure gauge movements,bimetallic springs,transfer springs,pressure gauge pointers and bourdon tubes in China.
Just as our company name "Faithful",we are a reliable supplier.

Pressure gauge movement included:

Obverse Installed Movement

Reverse Installed Movement

Stainless Steel Movement

Vibration-proof Movement

Double-cone Movement

Capsule Movement

Precision Movement

Our product is a key component for pressure gauges and thermometers which are widely used across many industries.
We have advanced equipment and professional technology and production team and excellent operator to ensure fast and high quality product. and its main features include:
1.Precision transmission: We use CNC lathe and precision compound dies to produce pressure gauge movement, then keep exact dimension and good transmission quality,which can accurately and quickly monitor the pressure. It meets the requirements of various pressure gauges.
2.Strong stability: All spare part of movement are strictly chosen from our inspector,and Our worker also strictly installs these spare parts by our operation manual.in order to assure good quality.
3.Material: Brass and Stainless steel and Brass+Stainless Iron can be chosen from customer.
4.Wide application: several thousands of these movements have been produced and sold successfully to pressure gauges manufacturer worldwide.

About Us

"Fast delivery, Fast Feedback, Stable Quality" has been operated and kept long time.

We received lots of good reputation from our clients because of our good quality and support each other. In the future, we will still maintain our fast action and good quality product to service all of our clients to reach the goal of win-win situation.

We expect that we will have a chance to cooperate with you.

If you are interested in these pressure gauge movements(manometer movements),please send your detailed drawing or sample for us as reference.

So that we can send the best price and make some samples for you to test them.

We also hope to work with research institutes and pressure gauge manufactures to realize our mutual benefit and developments.

Welcome everybody to inquire us.
